Supermicro 2016 Embedded Server/Storage line

Supermicro® show their New Compact Intel® Xeon® Processor D Based Products and Complete Server/Storage Solutions. The New Range of Embedded Building Block Solutions Deliver 16/12/8 Core Performance and 6/4/2 Core Low Power Options with Intel® Xeon® Processor D-1500 Family.

Supermicro expanded range of compact X10SDV motherboards which now extend top end performance with support for the new 65W 16-core Intel® Xeon® processor D-1587 on the X10SDV-7TP8F as well new low power solutions supporting the 25W 2-core Intel® Pentium® processor D-1508 on the X10SDV-2C-7TP4F featured in the new 1U 12x 3.5” hot-swap HDD Cold Storage solution SSG-5018D2-AR12L. The new series of compact X10SDV boards include support for Intel® Xeon® processor D-1500 family 8-core (X10SDV-7TP4F) in 1U warm storage SSG-5018D8-AR12L, 4-core (X10SDV-4C-7TP4F), and 2-core (X10SDV-2C-7TP4F) in 1U cold storage SSG-5018D4-AR12L. Combined with embedded optimized SuperChassis SC504/505/510/721 and SC514/515/813, Supermicro enables new applications from cold, warm and hot storage to converged infrastructure for network/datacenter edge to cloud solutions.

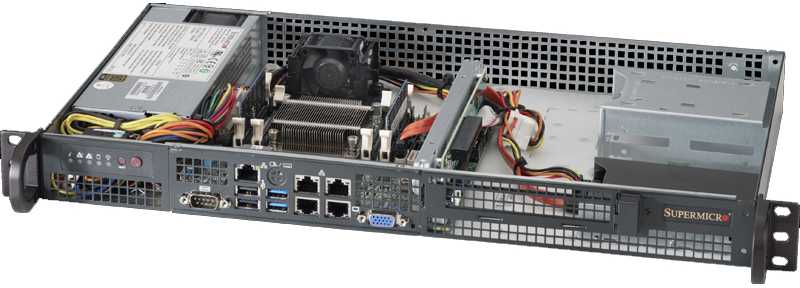

Short Depth 1U solution:

Supermicro’s compact 1U short-depth SuperServers, Mini-Tower and Box PC systems, ultra low-power Edge-to-Cloud mesh network Internet of Things (IoT) Gateway System (SYS-E100-8Q) powered by a 2.2W Intel® Quark™ SoC X1021, single (UP) and dual processor (DP) Intel® Xeon® processor-based motherboards and SuperChassis solutions.

Low power consumption, performance oriented solutions:

Supermicro’s expanded line of low power and performance oriented Embedded Building Blocks now enable new cold, warm and hot storage solutions as well as a complete range of converged infrastructure solutions optimized for data center, network and edge to cloud. With the vast growth of data driven workloads across embedded applications worldwide, the demand for a strong solution provider is critical. Supermicro’s dedication to offering the latest, most advanced technologies and developing complementing low power IoT gateway and compact server, storage, networking solutions deliver the best end to end ecosystems for ease of deployment and open scalability.

Within the new solutions:

Solution:	Form:	Highlight:
X10SDV Motherboards lines:	M/B	X10SDV-16C(+)-TLN4F – Mini-ITX, Intel® Xeon® processor D-1587 SoC 16-core, 65W (+ w/ Fan), Dual 10GbE/1GbE, M.2, up to 128GB DDR4 RDIMM, Optimized Chassis SC721, SC505/504 X10SDV-12C-TLN4F – Mini-ITX, Intel® Xeon® processor D-1557 SoC 12-core, 45W, Dual 10GbE/1GbE, M.2, up to 128GB DDR4 RDIMM, Optimized Chassis SC505/504 X10SDV-6C(+)-TLN4F – Mini-ITX, Intel® Xeon® processor D-1528 SoC 6-core, 35W (+ w/ Fan), Dual 10GbE/1GbE, M.2, up to 128GB DDR4 RDIMM, Optimized Chassis SC721, SC505/504 X10SDV-4C-TLN4F – Mini-ITX, Intel® Xeon® processor D-1518 SoC 4-core, 35W, Dual 10GbE/1GbE, M.2, up to 128GB DDR4 RDIMM, Optimized Chassis, SC505/504 X10SDV-7TP8F (SYS-1018D-FRN8T) – Flex ATX, Intel® Xeon® processor D-1587 SoC 16-core, 65W, Dual 10GbE SFP+, 6x 1GbE LAN Ports, up to 22x SATA devices, Optimized Chassis: SC515R X10SDV-TP8F (SYS-5018D-FN8T) – Flex ATX, Intel® Xeon® processor D-1518 SoC 4-core, 35W, Dual 10GbE SFP+, 6x 1GbE LAN Ports, up to 22x SATA devices, Optimized Chassis: SC505 X10SDV-7TP4F (SSG-5018D8-AR12L) – Flex ATX, Intel® Xeon® processor D-1537 SoC 8-core, 35W, Dual 10GbE SFP+, 2x 1GbE LAN Ports, Optimized Chassis: SC801L X10SDV-4C-7TP4F (SSG-5018D4-AR12L) – Flex ATX, Intel® Xeon® processor D-1518 SoC 4-core, 35W, Dual 10GbE SFP+, 2x 1GbE LAN Ports, up to 22x SATA devices, Optimized Chassis: SC801L X10SDV-2C-7TP4F (SSG-5018D2-AR12L) – Flex ATX, Intel® Pentium® processor D-1508 SoC 2-core, 25W, Dual 10GbE SFP+, 2x 1GbE LAN Ports, up to 22x SATA devices, Optimized Chassis: SC801L X10SDV-2C-TP8F – Flex ATX, Intel® Pentium® processor D-1508 SoC 2-core, 25W, Dual 10GbE SFP+, 6x 1GbE LAN Ports X10SDV-4C+-TP4F – Flex ATX, Intel® Xeon® processor D-1518 SoC 4-core, 35W (w/ Fan), Dual 10GbE SFP+, 2x 1GbE LAN Ports X10SDV-2C-TP4F (SYS-5018D-LN4T) – Flex ATX, Intel Pentium® processor D-1508 SoC 2-core, 25W, Dual 10GbE SFP+, 2x 1GbE LAN Ports, Optimized Chassis: SC504
Compact Servers	Compact Size Servers	SYS-E100-8Q – IoT Wireless Gateway. Compact, Ultra Low-Power, Fanless Edge to Cloud Mesh Network Device. Supports 2.2W Intel® Quark™ X1021 SoC SYS-5029S-TN2 – Space-efficient, Mini-Tower for Cloud/NAS applications in SOHO and Corporate environments. Supports 6th Gen Intel® Core™ i7, Core™ i5, Core™ i3, Pentium®, Celeron™ processors, Intel® Q170 Chipset SYS-5018A-FTN4 – 1U Short-Depth, Front I/O server for gateway, file-sharing, security appliances. Supports Intel® Atom™ processor C2758 (20W 8-core) SYS-E200-9B – Compact 1U Mini ITX BOX PC for digital signage, kiosk applications. Supports Intel® Pentium™ N3700 (6W 4-Core) SYS-5018A-TN7B – Compact Network Security Server with 3-pair LAN bypass capability. Supports Intel® Atom™ processor C2758 (20W 8-core) SYS-1018L-MP – Compact System optimized for Security Appliance, Surveillance, Digital Signage, Indoor Kiosk- Video processing, streaming. Supports 4th Gen Intel® Core™ i7, Core™ i5, Core™ i3, Pentium®, and Celeron™ processors, Intel® H81 Chipset SYS-1019S-M2 – 1U Rear I/O server optimized for Military, Industrial Automation, Medical application servers. Supports 6th Gen Intel® Core™ i7, Core™ i5, Core™ i3, Pentium, Celeron processors, Intel® Q170 Chipset
Uni-Processor (UP) Motherboards	M/B	A1SQN – Ultra Low-Power, Compact E100 (4.1″ x 4.0″) IoT Gateway device. Supports Intel® Quark™ SoC (2.2W), 512MB DDR3 ECC memory onboard, 2x Mini-PCI-E slots, 1x ZigBee module socket, TPM 1.2, 2x 10/100Mbps LAN Compact Low-Power Intel® Atom™ processor C2558/C2758 SoC, Micro ATX A1SRM-LN7F-2758F, A1SRM-LN5F-2358 (communications 3 pair LAN bypass); A1SRM-2558F/-2758F, A1SRi-2558F/-2758F (communications Intel® Quick Assist Technology) X11SBA-F/-LN4F – Mini-ITX supports Intel® Pentium® N3700 (6W, 4-core), Intel® HD Graphics with HDMI, Display port, and VGA, Quad 1GbE LAN (dual for -F) with IPMI X11SSV-Q – Mini-ITX supports 6th Gen Intel® Core™ i7, Core™ i5, Core™ i3, Pentium®, Celeron™ processors, Intel® Processor Graphics with DisplayPort, HDMI, and DVI-I for 3 Independent Displays, AMT 11.0, vPro X11SSQ – Micro ATX supports 6th Gen Intel® Core™ i7, Core™ i5, Core™ i3, Pentium®, Celeron™ processors, Intel® Processor Graphics with DisplayPort, HDMI, and DVI-D for 3 Independent Displays, AMT 11.0, vPro X11SSZ-QF – Micro ATX supports 6th Gen Intel® Core™ i7, Core™ i5, Core™ i3, Intel® Pentium®, Celeron® processors, Intel® Processor Graphics with 2 DisplayPorts and 1 DVI-I for 3 Independent Displays, AMT 11.0, vPro, IPMI, 12V DC X11SSZ-TLN4F – Micro ATX supports Intel® Xeon® processor E3-1200 v5, 6th Gen Intel® Core™ i7, Core™ i5, Core™ i3, Pentium®, Celeron™ processors, Intel® Processor Graphics with 2 DisplayPorts and 1 DVI-I for 3 Independent Displays, Dual 10GbE LAN ports , AMT 11.0, vPro, and IPMI X11SAE-F – ATX supports Intel® Xeon® E3-1200 v5, 6th Gen Intel® Core™ i7, Core™ i5, Core™ i3, Pentium®, Celeron™ processors, Intel® Processor Graphics with Display Port, HDMI, and DVI-D, 3 Independent Displays, AMT 11.0, vPro, and IPMI X9SKV-1125 – Intel® Xeon® processor E3-1125C, 40W, 2.0GHz. 8M, (formerly codenamed Gladden) / -1105 (Intel® Xeon® processor E3-1105C v2, 25W, 1.8GHz. 8M) / -B915 (Intel® Pentium® processor B915C, 15W, 1.5GHz. 3M); Flex ATX (9.0″ x 7.2″), Intel® Communication Chipset 8903, quad ports programmable LAN bypass
Dual Processor (DP) supporting Intel® Xeon® Processor E5-2600 v3	M/B	X10DRi/-T4+ – E-ATX, up to 1TB ECC DDR4 2133MHz in 16x DIMM slots, Intel® X540 Dual port 10GBASE-T LAN X10DRH-iT – E-ATX, up to 1TB ECC DDR4 2133MHz in 16x DIMM slots, 10x SATA3 (6Gbps) ports w/ Intel C612 controller; RAID 0, 1, 5, 10, Intel® X540 Dual port 10GBASE-T LAN X10DRL-i – ATX, up to 512GB ECC DDR4 2133MHz in 8x DIMM slots, 10x SATA3 (6Gbps); RAID 0, 1, 5, 10 X10DRL-CT – ATX, up to 512GB ECC DDR4 2133MHz in 8x DIMM slots, 8x SAS3 (12Gbps) via LSI 3108; HW RAID 0, 1, 5, 6, 10, 50, 60; 6x SATA3 (6Gbps); RAID 0, 1, 5, 10 X10DRW-i(T) – WIO, up to 1TB ECC DDR4 2133MHz in16x DIMM slots, 10x SATA3 (6Gbps); RAID 0, 1, 5, 10, Flexible I/O via WIO Riser Card, 1x PCI-E 3.0 x32, 1x PCI-E 3.0 x16 X10DDW-i – WIO, up to 1TB ECC DDR4 2133MHz in16x DIMM slots, 1x PCI-E 3.0 x32 Left riser slot, 1x PCI-E 3.0 x8 Right riser slot, 1x PCI-E 3.0 x8 for Add-On-Module, Intel® i350 Dual port Gigabit Ethernet, 10x SATA3 (6Gbps); RAID 0, 1, 5, 10
New Super Chassis	Chassis	CSE-514-R400C – 1U short-depth rackmount chassis for UP/DP motherboards. 2x 2.5″ Internal Drive Bays, 1x Full-height AOC expansion slot, 4x 40x56mm high-efficiency fans, 400W redundant power supplies CSE-721TQ-250B – Compact Mini-Tower for Mini-ITX motherboards, 4x 3.5″ Hot-Swap SATA HDD and 2x internal 2.5″ SATA HDD (or 1x 2.5” HDD + slim DVD slot), 1x low profile expansion slot CSE-101S – Slim, space saving 1U BOX PC for Mini-ITX form factor (7.68″ x 7.68″ x 1.75”), 1x 2.5″ internal HDD support (design for 9.5mm thickness HDD), VESA/Wall-mount ready CSE-504-203B – 1U short-depth rackmount chassis, 1x 3.5″ Internal Drive Bay with 1x Half-height, Half-length PCI, or 2x 3.5″ Internal Drive Bays, or 2x 2.5″ Internal Drive Bays with 1x Full-height, Half-length PCI, or 4x 2.5″ Internal Drive Bays
