Fully Optimized Workstations & SERVERS for Professional

RS720-E9-Rs24-E-

Rack Servers

ASUS servers offer the most optimized systems for HPC, data center, and cloud applications. Feature highlights include extreme computing power, high memory capacity and extra-efficient cooling.

ESC4000 G4-

GPU Servers

Asus GPU servers Deliver high density computing power, scalable expansion capability and high power efficiency, making it an ideal choice for the applications in the field of life and medical science, engineering science, financial modeling and virtualization

workstations-

WorkStations

The ASUS ESC Workstation Series fulfills the needs of professionals in graphics, GPU computing, and game development applications, aligning with the growing impact of GPU computing on the HPC segment

RS720Q-E9-

Multi Node Servers

Asus Muti-nodes solutions have been engineered for ultimate convenience, with a highly-modular design. Hot-swappable hard drives and power supplies combine with hot-pluggable nodes for effortless replacement and uninterrupted service. Each node has its own front panel for independent operation and caretaking.

RS700A-E9-

AMD Platforms

Based on NAPLES: The next generation OPTERON. More Cores, More Memory, More PCIe, SoC - No chipset of PCH

Rack Servers:

Built for Green and TCO optimization

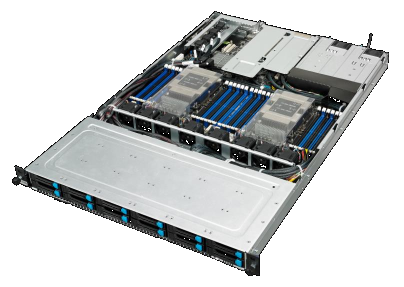

RS700-E9-RS12

  • NVMe Port-to-Port design, Full bandwidth
  • 12 x 2.5" Hot-swap Storage Bays in 1U
  • 24 x DIMM, DDR4-2666/2400/2133, RDIMM, LRDIMM, LRDIMM 3DS, AEP DIMM

High Performance 1U cache Server with 24 DIMMs and 12 drive bays

  • Target Market :
    • HPC ,Cloud Computing
    • Data Center
    • Virtualization application
  • Rack-optimized Placement
    • Optimized cooling efficiency, up to 165W CPU with 24 DIMMs
    • One CPU supports Omni-Path Architecture (OPA)
  • 3+1 Expandability
    • 3 x PCI-E Gen3 slots in 1U system
    • OCP 0 Mezzanine 10G /25G /100G LAN Card supported
  • Platinum-level Efficiency
    • BTC II
    • Digi+ EPU
    • Dr. MOS
  • Additional Storage for OS
    • Dual 2(NGFF)
    • Internal USB Type A Connector
  • Enhance Usability
    • Front USB (RS700-E9-RS4)
    • Diagnostic indicators
    • Tool-less rail kit
  • Server Management Solution
    • Onboard ASMB9-iKVM module for out-of-band management
    • In-band ASUS Control Center (ASWM Enterprise 2.0) provides efficient one-on-many management

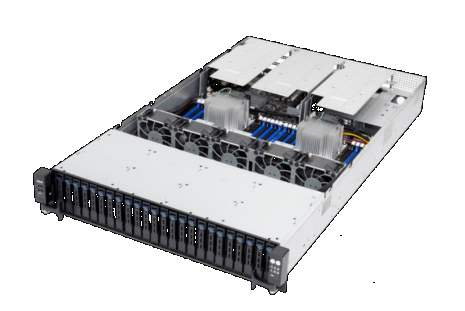

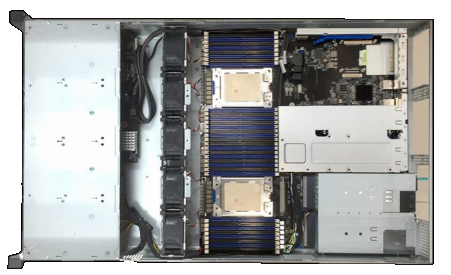

RS720-E9-RS24-E

  • 2U 24DIMM + 24Bays Extreme cache sever
  • 8 PCIe Expansions + 1 OCP 2.0 Mezzanine
  • Optimized for performance and efficiency with OPA (Omni-Path Architecture)

2U Storage server with 24 DIMMs and 24 Drives

  • Target Market :
    • HPC ,Cloud Computing
    • Data Center
    • Virtualization application
  • Rack-optimized Placement
    • Optimized cooling efficiency, up to 205W CPU with 24 DIMMs
    • One CPU supports Omni-Path Architecture (OPA)
  • 8+1 Expandability
    • 8 x PCI-E Gen3 slots in 2U system
    • OCP 0 Mezzanine 10G /25G /100G LAN Card supported
  • Platinum-level Efficiency
    • BTC II
    • Digi+ EPU
    • Dr. MOS
  • Additional Storage for OS
    • Dual 2(NGFF)
  • Enhance Usability
    • Front USB
    • Visible Port 80 from Outside
    • Tool-less rail kit
  • Server Management Solution
    • Onboard ASMB9-iKVM module for out-of-band management
    • In-band ASUS Control Center (ASWM Enterprise 2.0) Provides

Efficient One-on-many Management

  • one-on-many management

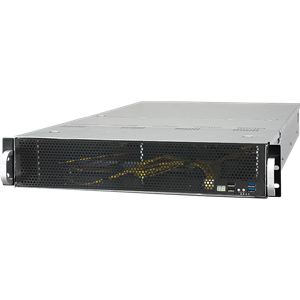

ESC4000 G4X

  • ESC4000 G4X supports up to four double-deck server GPUs in 2U form factor. Broad GPU support including NVIDIA, AMD and Intel.
  • Flexible 8+2 expansion slots in a 2U server ESC4000 G4X offers eight full-length PCI Express 3.0 x16 (4 at x16 link or 8 at x8 link), one low-profile PCI Express 3.0 x24 with support of a riser card for additional one PCI Express x16 (x16 Gen3 link) and one PCI Express x8 (x8 Gen3 link).

High performance 2U accelerator server with 16 DIMMs and flexible expansion

  • Target market
    • HPC, Scientific & Research, Render farm,
    • Cloud Gaming
  • Flexible Choice on Versatile Accelerators
    • Supports up to 4 double-deck Server GPUs & Desktop GPUs founders edition in 2U
    • Diverse VGA support including NV GeForce, Tesla, GRID, AMD and Intel
  • 8 + 3 Flexible Expansions in2U
    • Support up to 8 x full-height & full-length add-on cards
    • 2 for LP LP/HL add-on cards
    • 1 for Low-profile HBA/ASUS proprietary interconnection cards
  • Optimized Thermal Design
    • Crossover GPU fan Hot swap placement
  • High Power Efficiency
    • 1+1 redundant1600W 80Plus(Platinum level) power supply
  • High Density Transmission
    • Support Embedded Omni-Path 100Gbps Fabric
    • OCuLink for NVMe*2
    • 2 X 2.5″ NVMe

GPU Servers:

Leading AI and Visual Computing for Desk & Cloud

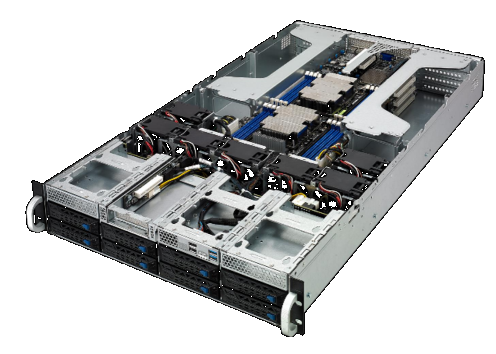

ESC4000 G4

  • 16 x DIMM, DDR4-2666/2400/2133, RDIMM, LRDIMM, LRDIMM 3DS Skylake-F family (CPU1)
  • 8 x 3.5” Hot-Swap HDD Bays
  • 2 x NVMe Supported

High performance 2U accelerator server with 16 DIMMs and 8 hot-swap HDD bays

  • Target market
    • HPC, Scientific & Research, Render farm,
    • Cloud Gaming
  • Flexible Choice on Versatile Accelerators
    • Supports up to 4 double-deck Server GPUs & Desktop GPUs founders edition in 2U
    • Diverse VGA support including NV GeForce, Tesla, GRID, AMD and Intel
  • 8 + 3 Flexible Expansions in2U
    • Support up to 8 x full-height & full-length add-on cards
    • 2 for LP LP/HL add-on cards
    • 1 for Low-profile HBA/ASUS proprietary interconnection cards
  • Optimized Thermal Design
    • Crossover GPU fan Hot swap placement
  • High Power Efficiency
    • 1+1 redundant1600W 80Plus(Platinum level) power supply
  • High Density Transmission
    • Support Embedded Omni-Path 100Gbps Fabric
    • OCuLink for NVMe*2
  • HDD Capacity : 8 x 3.5”

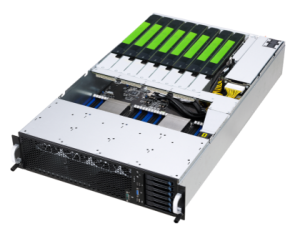

ESC8000 G4

  • 2 x Skylake-F CPUs(up to 205W), 8 x double-deck GPUs, 2 x Omni-Path, 3 x low profile I/O Upgrade Kits, 8 x HDD Bays and 24 DIMMs
  • Diverse GPU support: Nvidia GeForce GTX, Nvidia Tesla, Nvidia Quadro
  • Auto switch topology design

Ultra-high density solution in 4U system

High Density, Hybrid Computing Power

  • Supports up to 8 double-deck Server GPUs & Desktop GPUs founders edition in 4U
  • Maximum GPU utilizations for demanding computing power

Flexible SKU transform

  • PCI-E slots can config by CPU1 or CPU2
  • PCI-E lanes topology across PLX PCI-E switch can config by SW

Optimized Thermal Design

  • Crossover GPU fan Hot swap placement

High Speed Transmission

-Support Embedded Omni-Path 100Gbps Fabric

  • OCuLink for NVMe

Scalable Expansion Capability

  • 8 * PCI-E Gen3 x16 slots for FH/FL add-on cards
  • 2 * PCI-E Gen3 x16 slots for LP/HL add-on cards
  • 1 * PCI-E Gen3 x8 slot for Low-profile HBA/ASUS proprietary interconnection cards

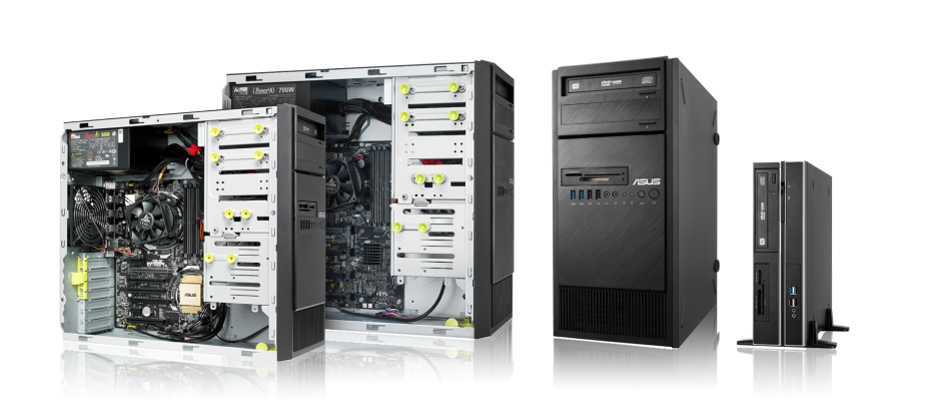

WorkStations:

Fully Optimized Workstation for Professional Content Creators

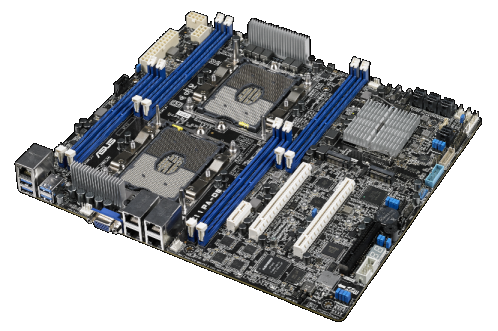

Z11PA-D8

  • 8 DIMMs (support up to DDR4-2666 Memory)
  • REDFISH + KVM-over-IP enabled by ASMB9-iKVM
  • Feature-rich Design in CEB size with ATX footprint

Dual Skylake SP, 8 DDR4 PIKE II, Oculink for NVMe , embedded BMC,

  • Target Audience:
    • SMB Group Server
    • Print/File/ Mail Server & Entry Storge Server
  • Feature-rich Design in CEB size with ATX footprint
    • Standard ATX Mounting Hole Location –Fit into ATX Case
  • Various storage expendabilities
    • Dual M.2(NGFF), Up 22110, capacity up to 2TB
    • UP to 16 on-board SATA 6G Ports
  • MOS + Beat Thermal Choke
    • Lower VR Temperature
    • Increase VR Efficiency
  • REDFISH + KVM-over-IP enabled by ASMB9-iKVM
    • Remote update BIOS for saving time & efforts
    • Standalone KVM/Java utility to simplify remote control process
    • Auto video recording for easily trouble-shooting
  • Up-to-date Intel Architecture Supported
    • Dual Intel® Xeon® E5-2600 V5 (Skylake-SP)
    • 8 DIMMs (support up to DDR4-2666 Memory)

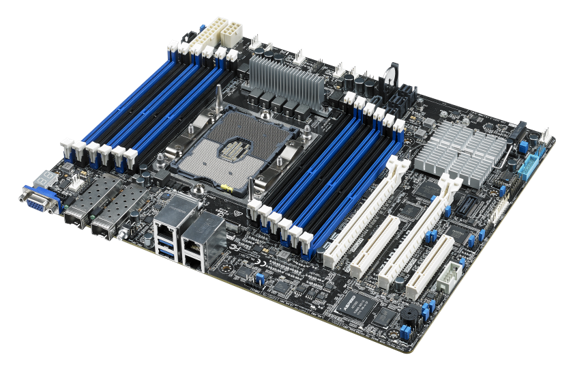

Z11PA-U12 series

  • 12 x DDR4 2666 DIMM Slots
  • 13 x SATA 6Gb/s ports 2 x PCI-E Gen3 x4 link ports 1 x M.2 up to 2280
  • 2 x Intel® I210 1GbE LAN +1 x Mgmt LAN 2 x 10Gb SFP+

Single Skylake SP, 12 DDR4, 10G, PIKE II, Oculink for NVMe, embedded BMC

  • Target Audience:
    • SMB Group Server; Print/File/Mail Server; Entry Storage Server
  • Maximum 12 DIMM slot
    • Huge memory capacity in UP Serverboard
  • High-speed Ethernet connection
    • Dual 10G SFP+ (With C622 SKU)
  • NVME Support
    • OCULINK *2 for fastest storage interface
  • ATX Size, EEB Mounting Hole Locations
    • Fit in PC chassis, rank and tower system
  • 2(NGFF) connector
    • For independent OS drive
  • ASMB9 down-to-MB
    • Network bonding supported – Failover
    • Virtual media over LAN – Multiple device
  • Support overclocking (TBD)
    • Ai Overclock Tuner and Xeon Turbo Charger in the BIOS are dedicated to boosting the CPU’s overclocking performance

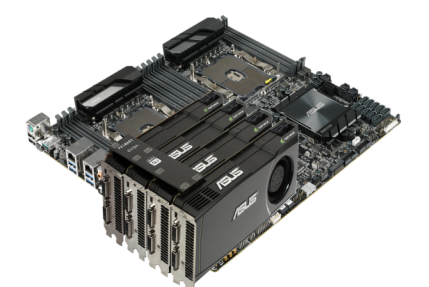

WS C621E SAGE

  • 12 x DIMM, max 768 GB*, DDR4 up to 2666 MHz​
  • 4-Way/Quad-GPU SLI® & 4-Way/Quad-GPU CrossFireX™​
  • ThunderboltEX 3​

Up to 4-Way Nvidia® SLI® and AMD® CrossFireX™ support on demand



  • Target Audience:
    • Engineers & Scientist
    • Animation/Digital content creator
  • EXtreme Power
    • Up to 4-Way Nvidia® SLI® and AMD® CrossFireX™ support on demand.
    • Validated with diverse GPUs from AMD and NVidia.
    • Intel Virtual RAID on CPU supported
    • Supports up to 12 DDR4 LRDIMM/RDIMM
  • Two-way XEON CPU extreme performance
    • Supports dual CPU, providing more cores, and more processing power.
    • Provides extreme performance with 2-way Xeon O.C.
    • Reliable and Stable
    • Supporting server-class Intel XEON CPU and Error-correcting code (ECC) memory.
    • Protect your graphic investment with ASUS SafeSlot
    • ProCool Power connecter, Beat thermal choke, Dr MOS, and Digi+ VRM for the platinum efficiency
  • Expandable and Scalable
    • Providing many feature enhancement with  plentiful connectivity, with U.2, M.2 connectors, dual Gb LAN, USB 3.1 Type-C & Type-A onboard.
    • Management and Maintenance
    • BIOS Flashback for EZ, quick update of BIOS
    • Asus Control Center (ACC) Management supported

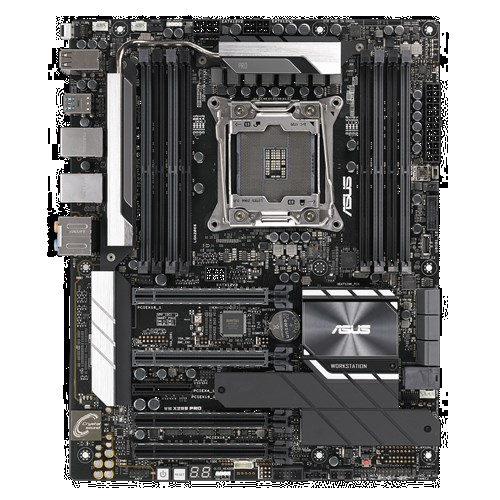

WS X299 PRO/SE

  • Heatsink designed for optimizing HCC (High Core Count) CPU overclocki
  • Superb memory overclocking Up to 4133 MHz (OC)
  • USB 3.1 Gen2 Rear & front panel connector

Best optimized design for overclockable HCC processors



  • Target Audience:
    • Animation/Digital Content Creator
    • Gaming Enthusiasts
  • Best optimized design for overclockable HCC processors
    • Heatsink designed wit h multi-fin and heatpipe, tremendously increasing surface area for heat dissipation.
    • ASUS ProCool Connectores providing enough power wattage and keeping connectors cool
    • 5-Way Optimization – With one click, the whole system is optimized for best CPU performance, power saving, digital power control, system cooling and app usages.
    • Designed with ASUS PRO Clock technology extending CPU and Memory OC Power
  • Up to 3-way graphic power supported by ASUS Safeslot
    • 3 PCIe Gen3 x16 slot supporting up to 3-Way AMD® CrossFireX™ and Nvidia® SLI® on demand.
  • Ultra-fast storage and IO options to choose
    • Onboard 2x M.2 slot with M.2 heatsink for optimum cooling.
    • 32 Gb/s 2.5”SSD supported by onboard U.2 port
    • USB 3.1 Gen2 Type-A and Type-C rear ports and future proof USB 3.1 Gen 2 front panel connector



Multi Nodes Servers:

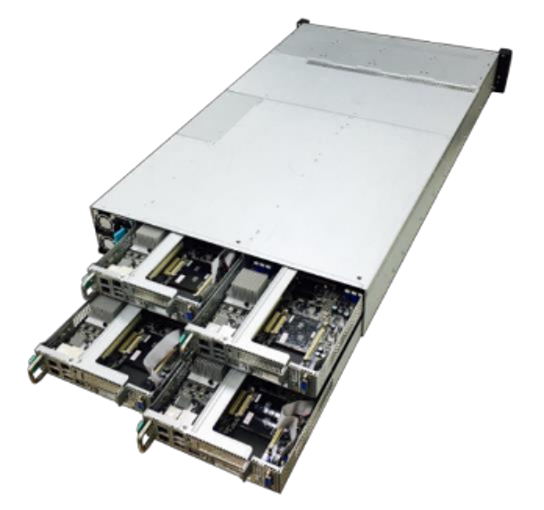

RS720Q-E9 Series

  • Ultra computing performance
  • 8 x NVMe support, Hybrid NVMe/SAS/SATA
  • Optimized for performance and efficiency with OPA (Omni-Path Architecture)

High Density Computing for HPC Applications

  • Massive Storage Capacity
    • 8 x 2.5” Hot-swap HDD Bays  (8 NVMe Supported).
  • High Power Efficiency
    • 1 + 1 1600/2200W80 PLUS Platinum CRPS
  • Modular Design for Independent Maintenance
    • 3+1 Expansions in 1U
    • Future Dual Intel® Xeon® processor Skylake EP family
    • OCP 2.0 Mezzanine (Mezzanine ((Gen3  x16 link)
    • Omni Path Fabric Support (CPU2)
    • NVMe Convert Kit
    • Dual M.2
    • Visible Q-Code
    • SD Card Support
    • 1 x PCI-E x16 (Gen3 x16 Link(

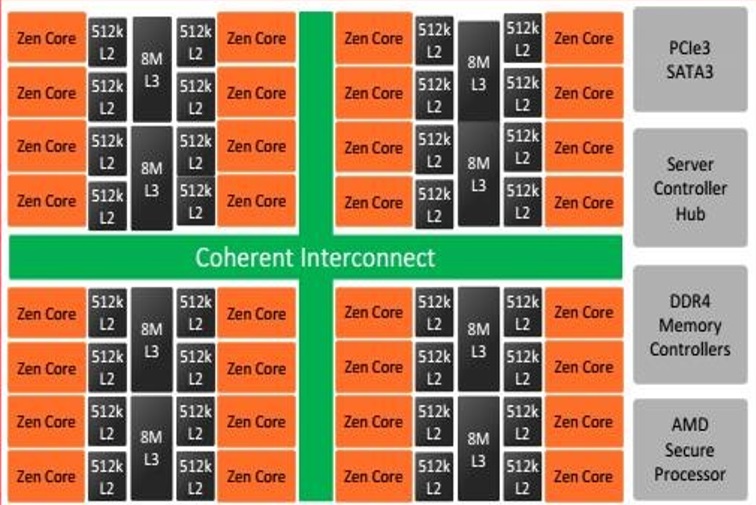

AMD platforms:

More Cores : –   UP to 32c/64t
Up to 50% more core and VM density vs mid-bin E5
More Memories: –  8 Channels (2 DPC)
33% more bandwidth and capacity than E5.
MORE PCIe – 128 Lanes
2P worth of I/O In a 1P
SoC – No Chipset or PCH

Superior Security – SME/SEV
Full memory encryption
VM isolation/protection
No application changes required

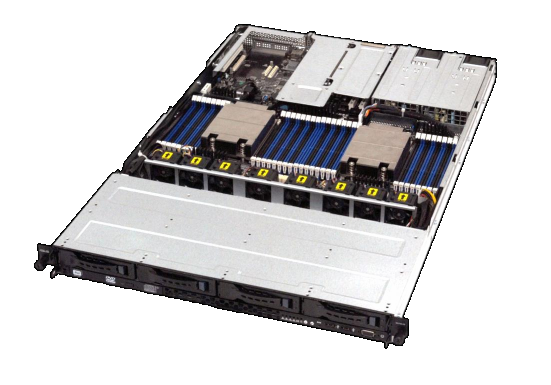

RS700A-E9 Series

  • 32 x DDR4-2666/2400/2133, RDIMM, LRDIMM, 3DS DIMM
  • Support up to 180W AMD Opteron™ Processor Naples
  • 1 x OCP Mezzanine 2.0 (Gen3 x16 link)

1U Performance Server

  • Target Market :
    • HPC, Cloud Computing
    • Memory Cache
    • Virtualization Application
  • Rack-optimized Placement
    • Optimized Cooling Efficiency
  • Up-to-date AMD Architecture and Technology
    • Industry-leading Core Density – Up to 64 Cores
    • Best-in-class Memory Bandwidth and Capacity
    • 32DIMMs, 16 Channels DDR4
    • Integrated I/O – No Chipset
  • 3+1  Expandability
    • 3x PCI-E Gen3 Slots in 1U System
    • OCP Mezzanine 0 10G/25G/100G LAN Card Support
  • Additional Storage for OS
    • Dual x4 2(NGFF)
  • User-Friendly Design
    • Visible Q-Code from Outside
    • Tool-Less Rail Kit
  • Server Management Solution
    • Onboard ASMB9-iKVM for Out-of-Band Management
    • In-band ASUS Control Center Provides Efficient Centralized Management



RS720A-E9 Series

  • Support up to 32 x DDR4- 2666/2400 RDIMM/LRDIMM
  • 24 x SAS/SATA Supported
  • Support up to 180W AMD Opteron™ Processor Naples

2U Performance Server

  • Target Market :
    • Cloud Tier-0 or Tier-1 Hot Data Cache Server
    • Enterprise Storage
    • Virtualized Storage
  • Rack-optimized Placement
    • Optimized Cooling Efficiency
  • Up-to-date AMD Architecture and Technology
    • Industry-leading Core Density – Up to 64 Cores
    • Best-in-class Memory Bandwidth and Capacity
    • 32 DIMMs, 16 Channels DDR4
    • Integrated I/O – No Chipset
  • 8+1 Expandability
    • Default 7(x8) + 1(x16) x PCIe 0 Slots
    • OCP Mezzanine 0 10G/25G/100G LAN Card Support
  • Additional Storage for OS
    • Dual x4 2(NGFF)
  • User-Friendly Design
    • Front USB
    • Visible Q-Code from Outside
    • Tool-Less Rail Kit
  • Server Management Solution
    • Onboard ASMB9-iKVM for Out-of-Band Management
    • In-band ASUS Control Center Provides Efficient Centralized Management
